  •  /T1 Flat - LED high bay for indoor and outdoor lighting

T1 Flat  LED high bay for indoor and outdoor lighting

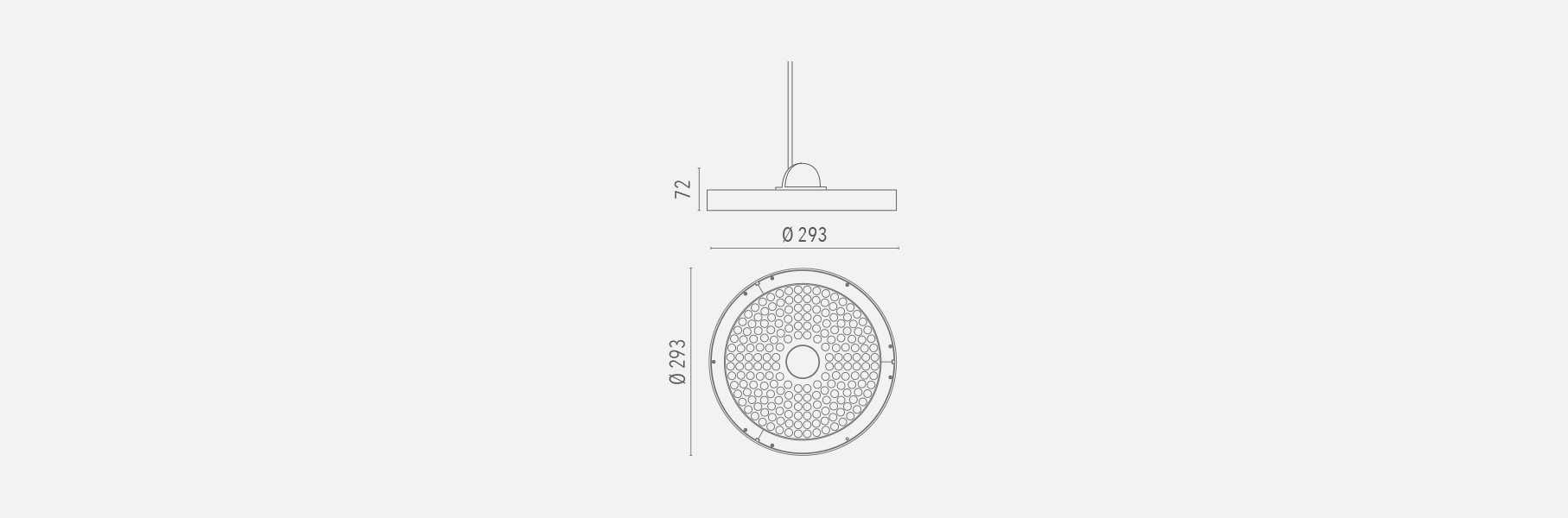

Lighting fitting with a diameter of 293 mm that combines perfectly high energetic performances with a clean design. It’s available with 100 W.

The intermediate version of the rounded suspensions has a diameter of 293 mm and, as the other fittings of T family, it stands out thanks to the high performances combined with the pleasant design. Entirely manufactured in Italy, it can be used to light up production plants, food production areas, warehouses and deposits. The LED light source (Lumileds) is available standard with 4000 K colour temperature, with 3000 K, 5000 K and 5700 K upon request. T1 has an high CRI coefficient of ≥ 80 and it has a power of 100 W. The optics are made of optic polycarbonate and they are available with 60° and 90° of the standard configurations. The body and the anti-rotation lock are made of die-cast aluminium painted with polyester powder.

IP Protection grade

IP 66

Protection class

I

CRI

≥80

Voltage

220-240 V AC 50/60 Hz

Max weight

4 Kg

Warranty

5 Years

Body

Body and anti-rotation block made of polyester powder coated aluminum alloy UNI EN 1706 (Low copper content) painted with polyester powder. Polyester powder-coated galvanized steel bracket. Stainless steel screws AISI 304. Glass, on request, tempered glass of sodium calcic type, thickness 4 mm, 91% transparency and IK07. Silicone gaskets.

Source

External driver in Blank and dimmable versions.

Voltage

Driver included.
Input voltage 220-240 V AC 50/60 Hz.
Temperature -40° +45°
Life 30000h / 25°.

Applications

Industrial installations, food production areas, warehouses and deposits.

Note

3000 K, 5000 K and 5700 K versions available on request.

Decay of the luminous flux

≥100.000 hr L85B15

Colours

Further information about the product

  Join our Mailing List to find out all the updates on our products

  I consent to the processing of personal data according to the current Privacy legislation. Consult the Privacy Policy

(*) Mandatory fields.

Luminous distribution


  • Beam 60°
  • Beam 90°

ON-OFF product codes
(For the Dimmer and Dali version codes see the technical data sheets)

Slide the table to the right

Code Source Power Fitting output Light source output Temperature CRI Beam Datasheet IES LDT
Code Source Power Fitting output Light source output Temperature CRI Beam Datasheet IES LDT
LT1FL4060BL40100 LED 100 W 15654 lm 17100 lm 4000 K ≥80 60°
LT1FL4090BL40100 LED 100 W 13831 lm 17100 lm 4000 K ≥80 90°

Download the instruction sheet here:

Available also in the versions 3000K, 5000K and 5700K. For different colour temperatures do not hesitate to contact us

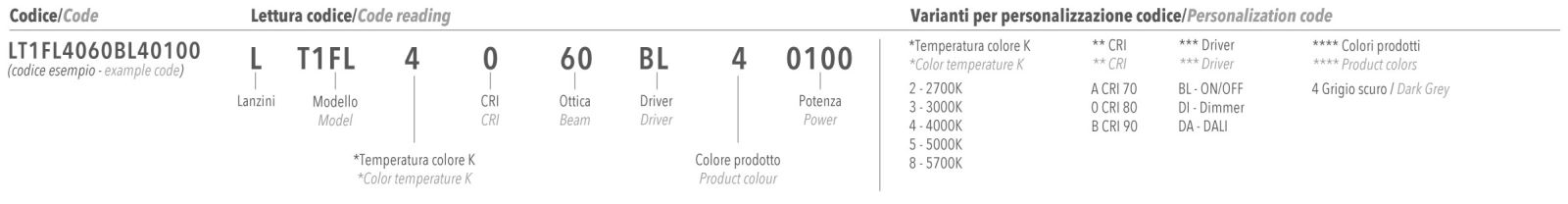

How to read and compose a new code:
